Heat Tape Calculator for

Shingled Roofs

Use the following calculator to help determine what length of cable
and how many clips you need.

Questions? Call Us.

877-387-4218

Complete Measuring Guide

To view a detailed guide on how to measure for your heat tape installation, click below:

View Guide
Measuring for Heat Tape, Step 1

Quick Measuring Directions:

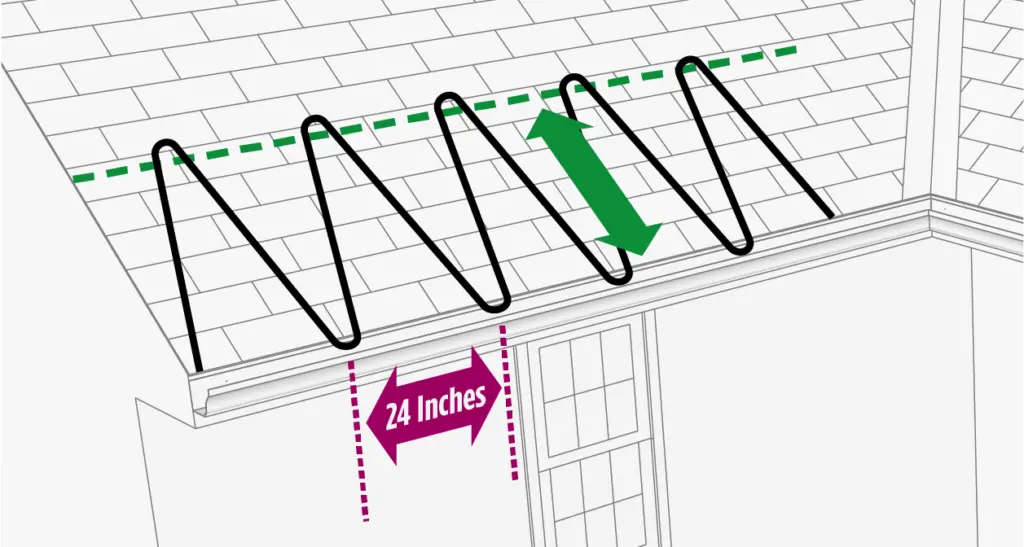

  1. Measure the linear feet of roof eave (A) that you want to protect
  2. Measure the depth of the eave (B)
  3. Note any valleys in the roof (C) that exist where the heat cable will be installed
  4. If there are gutters, make note of the number of downspouts

Shop

Find heat tape products & accessories for ice dam prevention and pipe freeze protection.

Ice Dam Prevention

Pipe Freeze Protection

Looking for an Installer?

We may be able to help connect you with a Radiant Solutions Heat Tape installer in your area.

Find

Product Manuals

And Product Dimensions

Learn

Understand the problems that our products solve and the advantage Radiant Solutions has over our competitors.

Want to Be an Installer?

Demand is high across the U.S. & installers are needed!

Safe & Secure

128-Bit encrypted connection

Instagram Facebook Youtube Google

Questions?

We’re here to help. We are a 35 year old, family-owned, American company who loves to hear from our customers.

© Copyright, 2016 – 2025, Radiant Solutions Company. All rights reserved.
Roof types for Heat Tape

Large Job Options

If your heat cable project requires more than 150 feet, you have two simple options: Use a pair of our plug-in ready HeatTapePRO cables or, hardwire a single 240 volt cable from a spool. It’s important to note that a typical,standard residential outlet/circuit can only support a single 150′ cable at a time.

Option 1:

heat tape installation 2 cables

Two Plug-in Cables

Requires Two Outlets on Different Circuits

It’s often possible to use two standard, plug-in ready HeatTapePRO cables to addess larger areas. You will need to plug the cable into separate outlets on different circuits. Remember, all HeatTapePRO cables have a 10-foot length of power cord not included in it’s stated length.

To use two plug-in cables, divide your planned layout into two sections, and calculate the length needed for each.

Option 2:

heat tape installation 240v cable

A Single 240 Volt Cable

Hardwired: Requires a Junction Box

You can install a lot of our 6 watt, 240 volt heat cable on a 240 volt circuit. Although our plug-in cable has a top length of 150-foot, installing spooled cable is identical to pre-assembled cables with the exception of connections and terminations. You must terminate the end of your cable with either our traditional End Seal Kit, or our popular GlowCap End Seal Kit. You will also need to connect your heat cable to a junction box fed by 240 volts using our Hardwire Connection Kit. Connection kits take about 10 minutes to execute.
