Nail On Roof Clips for Heat Tape

The Classic Ice Dam Heat Tape Clip

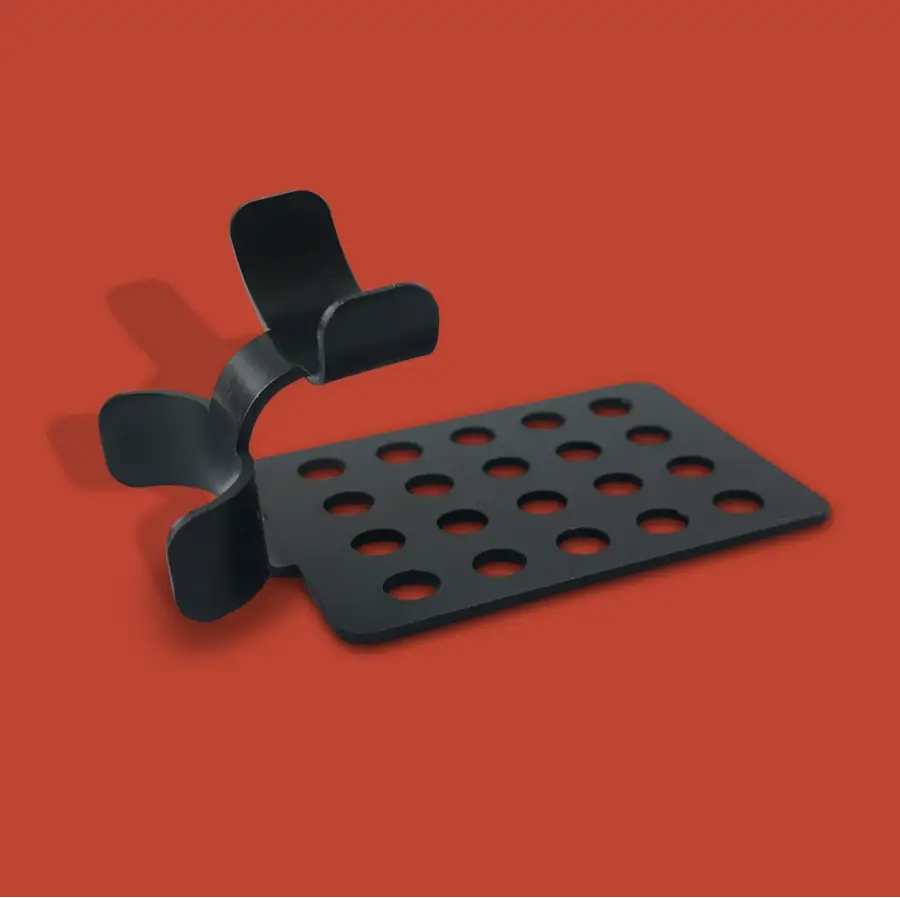

Clips to position & fasten heat tape for ice dams to your roof. Fasten clip to roof, then quickly and easily hold heat tape in desired position. Clips are designed to firmly hold tape in place through storm weather and winds. Sold in boxes of 25 and 50. Made of non-corrosive aluminum, in anodized black. For use with all ice dam heat tape & de-icing cable, including all Radiant Solutions Pre-Assembled Heat Tape lengths & ice dam heat tape spools.

Don’t know how many clips you need for your heat tape? Check out our Heat Tape Calculator:
Heat Tape and Clip Calculator

$30.95$56.95

SKU: IDP-113 Category:
FREE Shipping

Learn More About
Nail On Roof Clips for Heat Tape

Additional Product Details, FAQs, and Related Products

How Much Do You Need?
Don't Know?

Use Our Installation Calculator to Determine How Much

Case Studies:
Installation Examples

See the Different Ways You can Solve Ice Dam Problems

Talk with An Expert

Have a Conversation with One of our Expert Heat Tape / Ice Dam Technicians.

5/5

“Heat Tape Pro did exactly what I needed it to do. Now I don’t have to worry about water leaking into my house, because I can tell when it’s working by the little light on the end of the cable.”

-Michael P.
Amazon Customer

4/5

“This heat tape works as advertised. It was delivered to me fast, and although it’s a little complicated to install, the documentation is good..”

-Shaun D.
Radiant Solutions Customer

5/5

“I install thousands of feet of heat tape every year. This is the best stuff I’ve found to protect my customers homes and give them the piece of mind they need.”

-Patrick B.
Professional Installer

More About Nail On Roof Clips for Heat Tape

Radiant Solutions Company’s take on the industry standard for Heat Tape roof installation. We’ve sourced high-quality aluminum and employed an anodization process to make a discreet black color that blends in with most roofs.

Nail On Roof Clips require the use of some form of fastener (nails, screws, adhesive). For a solution that does not require a fastener, see our Grip Clip Heat Tape Clips.

Nail On Roof Clips for Heat Tape FAQs

Yes!

Installing our heat tape on your standing seam roof can be very effective in combating ice dam formation. There’s two main products used to install heat tape on your standing seam metal roof: The S-5 SR Heat Tape Clip, and the standard ice dam heat tape clip.

Installing Heat Tape on a Standing Seam Roof with the S-5 SR Heat Tape Clip
The S-5 Heat Tape Roof Clip is a new, patented roof clip design specifically for standing seam applications with a focus on ease of install and effectiveness. It is used in conjunction with the S-5 Base, which needs to be purchased separately. The S-5 base is designed to clamp onto the seam of a metal roof as the S-5 Clip holds your ice dam heat tape into position. Can be set up in a single or dual-clip configuration. (See product page for more info)


Installing Heat Tape on a Standing Seam Roof with Standard Roof Clips

There are specific ways/configurations used when installing heat tape on a standing seam / metal roof using standard heat tape clips. The following (2.6 – figure 16.0 & 17.0) shows a snippet of the HeatTape Pro installation manual showing two different clip configurations, more info can be found in the manual itself: Heat Tape Pro installation Manual

No.

Heat tape cables should not be installed in any permanently hidden areas.

We don’t install heat tape, but we know who does.

We work with licensed roofers, electricians and other contractors as Installers of Radiant Solutions Products. We have installers all over the country.

If you are interested in finding a Heat Tape PRO™ installer in your area, click here to submit your info. If we have an installer we know of in your area, we will send you a recommendation.

Check Out Our Heat Tape Calculator!

You can use our Heat Tape Calculator to help you determine the length of heat tape you need, the number of GripClips, nail-on heat tape clips, and the number of Downspout Hangers you need.

Category: Roof & Gutter Installation

Good news. Heat Tape Pro and Pipe Freeze Pro are the only heat cables in the world you can see is working. The GlowCap™ is the LED end cap used to terminate all of our pre-terminated heat cables. If you see the green light glowing at the end of the cable, the cable is working. We also offer a GlowCap™ End Seal Kit for field assembled cable systems. Another quite obvious way of determining if your heat cable is working is to feel if it is warm.

Not as hot as your forehead.

Radiant Solutions Self-Regulating Heat Tape changes its heat output based on the temperatures of its surrounding environment. At any given point, depending on the temperatures outside, the cable could be a range of temperatures. However, its peak temperature is not very hot –typically between 60º-85º when operating in a cool environment. Another way to think about it is that as long as the cable is above freezing it will do its job, which is to create and maintain melted pathways through snow and ice.

This gives our Heat Tape a great advantage over the heat tape you can buy in ‘Big Box’ retailers, because it creates enough warmth to effectively do its job, but won’t do damage to surfaces that it touches. Additionally, our heat cable can be overlapped without concern. Heat Tape that is not self-regulating (i.e., ‘constant wattage’) can not do this (they have explicit warnings in the directions not to do this for risk of fire).

We have even witnessed a coil of crappy big box heat tape starting a fire because it got plugged in when it was still coiled. (Yikes!)

Including a thermostatic heat tape switch or controller in your installation will cut power to your heat tape in times it is not needed. This will lesson your environmental footprint and save you money.

Savings will always depend on the weather and how often you have temperatures above the threshold that the switch turns on your heat cable. In most situations where heat cable is needed, savings will offset the cost of the ThermaCord and then some.

Self-Regulating Heat Tape will draw variable Power depending on the ambient temperature. It draws more power when temperatures are cold and less power when temperatures are warmer. However when the self-regulating cable is plugged in, it is always working, even if only slightly drawing power in warm temperatures. Adding the temperature-controlled switch like ThermaCord to plug-in heat tape or a Thermostatic Controller with Sensor to field assembled cable, will cut the supply of power to your Heat tape when it is not needed.

This will save you energy Costs.

Heat Tape purchased in big-box stores is most often constant wattage heat tape. “Constant Wattage” means: it’s always on. It is always drawing full power and is costing you peak energy expenses, which –over the length of a season can add up huge. Thought you were saving money on that heat tape you got at that home improvement store? Guess again.

Radiant Solutions’ Heat Tape PRO™ heating cable is Self-Regulating. This means, as the temperature gets colder, the cable creates more heat by drawing more power and when it gets warmer it creates less heat by drawing less power. This allows you to consume only the energy you need to help protect your home from damage caused by the ice and cold.

How can it do this?

The core of our ice dam heat tape is comprised of two bus wires encased in a material that is infused with carbon. As ambient temperatures decrease, the core material shrinks pulling the bus wires closer to each other, creating more electrical pathways through the carbon which makes the cables heat up. When ambient temperatures get warmer, the inner core expands and the cable demands less energy and creates less heat.

Can’t I just accomplish this with constant wattage heat tape and a “switch” or thermostatic control?

No, not really. Because any control or switch is still going to tell your constant wattage cable to be either off or on at 100% power. It is very binary. Conversely, Self-regulating Heat Tape will output variable temperatures based on the external, ambient temperature. So when it’s 31ºF or 10ºF constant wattage heat tape will always be on full heat, where self-regulating heat tape will only use just enough power to be at the temperature you need to prevent ice dams on the roof or frozen pipes around your property.

There’s also some safety considerations.

Among other things, constant wattage heat cable cannot be overlapped without creating risk of over heating or shorting out. It cannot be used under 15°F, it cannot be used on wood roofs, rubber roofs, metal roofs, or anything other than asphalt shingle roofs. You must clean combustibles such as leaves away from constant wattage cable throughout the operating season. The warranty on most constant wattage heat cable systems is no more than two years. Lastly, unlike self-regulating heat cable systems, constant wattage heat cables cannot be repaired in the field if they are damaged. One knick in the jacketing, and the cable is done.

You can install Heat Tape on pretty much any type of roof.

This includes, but is not limited to:

  • Asphalt Shingle
  • Cedar Shakes and Shingles
  • Slate
  • Spanish Tile
  • Metal
  • Flat Roofs (EPDM, TPO, Sprayed Urethane, etc.)

The type of roof you have determines the roof clips and accessories needed. Check out our Heat Tape Installation Accessories.

Categories: Roof & Gutter InstallationRoof Types

The short answer is NO. Self-regulating heat cable does not turn itself on and off automatically. To do that you need to put the cable on a switched circuit or outlet or on a controller. Of course, you can also be old-school about it and simply plug and unplug as needed.

“Self-Regulating” refers to the fact that these cables are temperature sensitive. Due to their construction, these cables sense changes in temperature along their entire length, demanding more power as temps fall and less when they rise.

PipeFreeeze Pro™, Pipe Freeze Protection Solution has a built in thermostatic switch, meaning it will turn on and off on it’s own.

Heat Tape Pro™, does not contain a built-in thermostatic controller. We recommend adding the ThermaCord™ Thermostatic controller to turn your Heat Tape PRO to turn the cable on and off with changes in temperature.
